Quick Details

  • Type: Filling Machine
  • Condition: New
  • Application: Chemical
  • Packaging Type: Case
  • Packaging Material: Wood
  • Automatic Grade: Semi-Automatic
  • Driven Type: Pneumatic
  • Voltage: 220V/380V
  • Power: 0.75KW
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Lianhe
  • Model Number: LGJ-L50
  • Dimension(L*W*H): 300*400*1200MM
  • Weight: 500kg
  • Certification: CE ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: 6 heads full automatic cream paste filling machine
  • Material: Stainless Steel
  • Usage: liquid and cream
  • Bottle type: Round and Flat bottle
  • Driven type: pneumatic
  • Filling range: 2-50ml 10-150ml 30-300ml 50-500ml 100-1000ml
  • Product Type: Vertical Pneumatic
  • Cylinder: imported
  • Applicatin: liquid and cream
  • Warranty: One Year

Packaging & Delivery

Packaging Details standard export wooden packing
Delivery Time within 10 working days

full automatic liquid filling machine automatic cream filling machine

Product Description

full automatic liquid filling machine automatic cream filling machine

This filling machine is an automatic filling and capping machine. it adopt piston filling type,it could be applicable for all kinds of oil,fruit &vegetable sauce(with or without solid piece),granule drink quantify filling and capping . no bottles no filling and capping,PLC control system,easy operation.



1 using the world -renowned brand of electrical and pneumatic components , the failure rate is low , stable and reliable performance, long life ;
(2) contact with the material are made of stainless steel , disassembly is simple, easy to clean, with food hygiene requirements ;
(3) filling volume and filling speed adjustment is simple, has no bottle no filling , liquid level control feeding, appearance ;
4 does not require replacement parts , you can quickly adjust the size of the bottle to replace the different shapes , applicability ;
5 Filling nozzle with anti-drip device to ensure the filling without drawing, do not drip.


Technical Parameter


Type6-12 heads automatic filling machine
Filling speed80-100bottles/min (250ml / 10 filling head)
Filling precision ±1%
Cylinder Spec.25-250ml, 50-500ml,100-1000ml,250-2500ml
Working Pressure5-7kg/m²
Net Weight950kg
Dimension  2000x810x2200mm


Packaging & Shipping

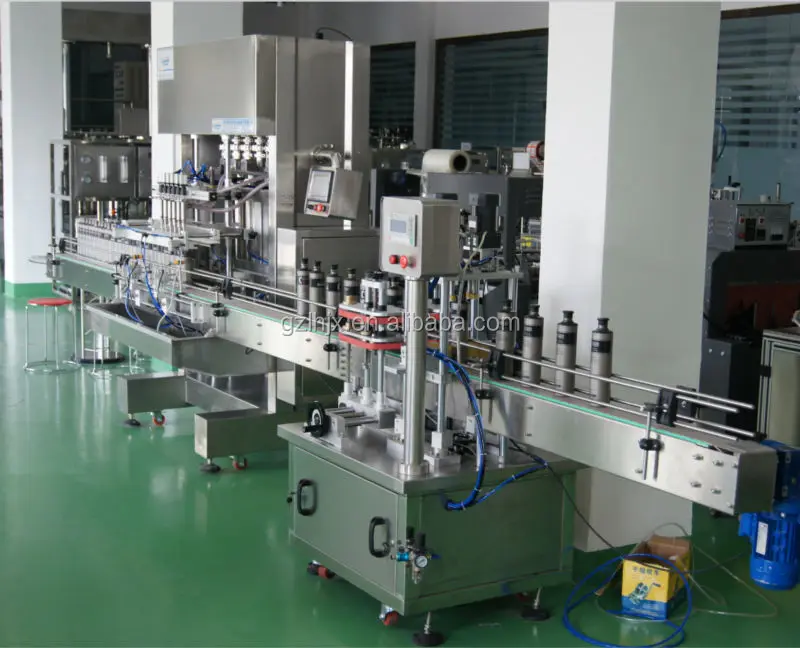

Our Show Room



Our Service


1. The machines' quality that we sold will be guaranteed for 1 year.

2. We will give you long time technology supply.

3. We can also supply you training process, so your engineers can fit and debug machines by themselves.

4.We will send some   accessories  and operation video for you .


Q1:Are you a trading company or factory ?


A:We are factory with more than 10 years experiences.We have own working shop and professional team.


Q2: Can i have my own customized products ?


A:  Yes, your customized requirements for color, logo, design, mark, etc.  are very welcome.


Q3:How about install?


A:Our engineers will be sent according to your project.The customer should pay the economic air tickets round trip and arrange the accommodation for our engineers.


Q4: What can you do if the macines meet problem?


A:The picture or video to show the problem should be provided,then we will send you teching video based on the small machines,if for the big problem for big machines,engineers will be sent .


Q5:How can you control the quality and delivery ?

A:All our machines should be tested before packing.wooden packing is strong and safety for long delivery .
